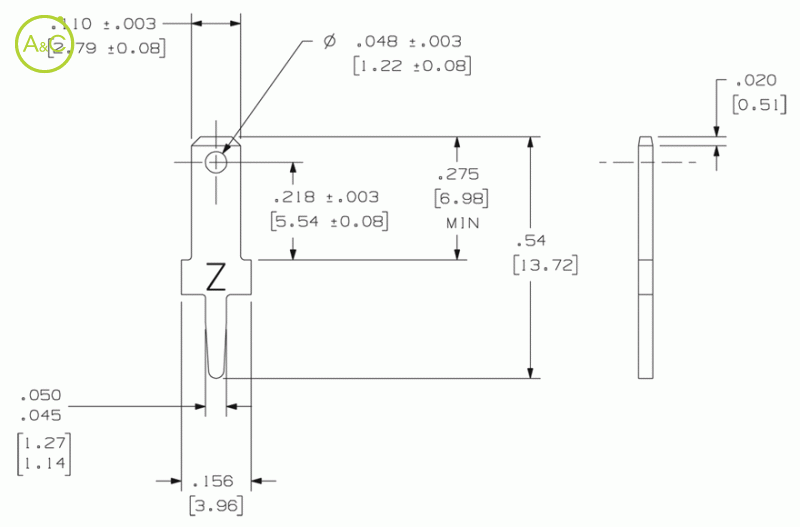

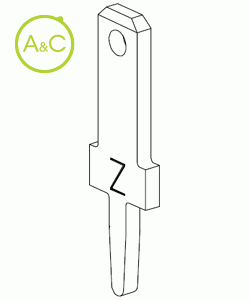

0.110" (2.79mm) Tabs / Quick Disconnect Terminals
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
Packaging
- Loose
- Reeled
| Article Number | 834 | 835 |
| Extra Description | Straight, 13.72 mm high | Straight, 13.72 mm high |
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating Ul | 10 Amperes | 10 Amperes |
| Current Rating C-ul | 10 Amperes | 10 Amperes |
| Ul File Number | E146208 | E146208 |
| Applicator System | Loose: ZPT81-A Reeled: Model 9700, 9700 XY | Loose: ZPT81-A Reeled: Model 9700, 9700 XY |
| Mounting Type | Press-Fit | Press-Fit |
| Mounting Hole Diameter | 0.044" ±0.003" (1.12mm ±0.076mm) | 0.050" ±0.003" (1.27mm ±0.076mm) |
| Pieces Per Reel (loose Part No.) | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
