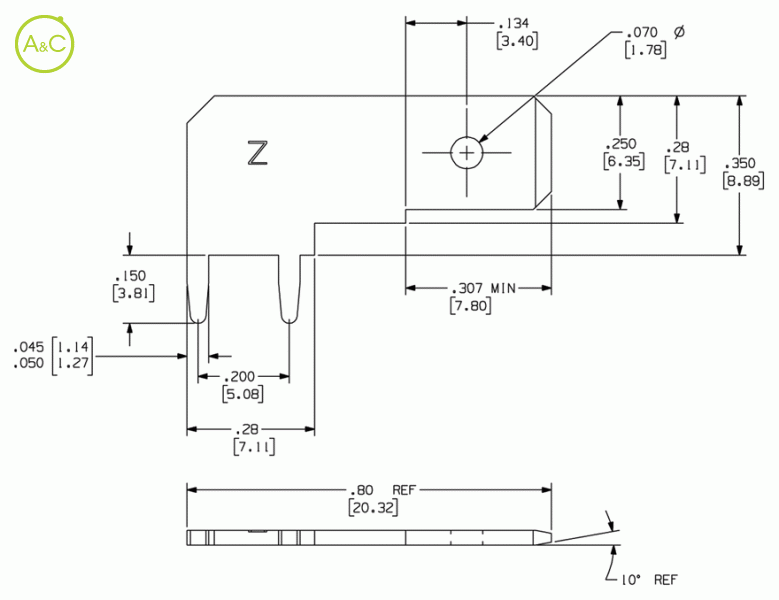

0.250" (6.35mm) Right Angle Tabs / Quick Disconnect Terminals
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
- General
| Article Number | 901 |
| Packaging | Loose |
| Extra Description | Tab length is 20,32 mm |
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | 20 Amperes |
| Current Rating C-ul | 20 Amperes |
| Ul File Number | E146208 |
| Applicator System | ZPT92-250 |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.47mm ±0.076mm) |
| Pieces Per Reel (loose Part No.) | NA |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
