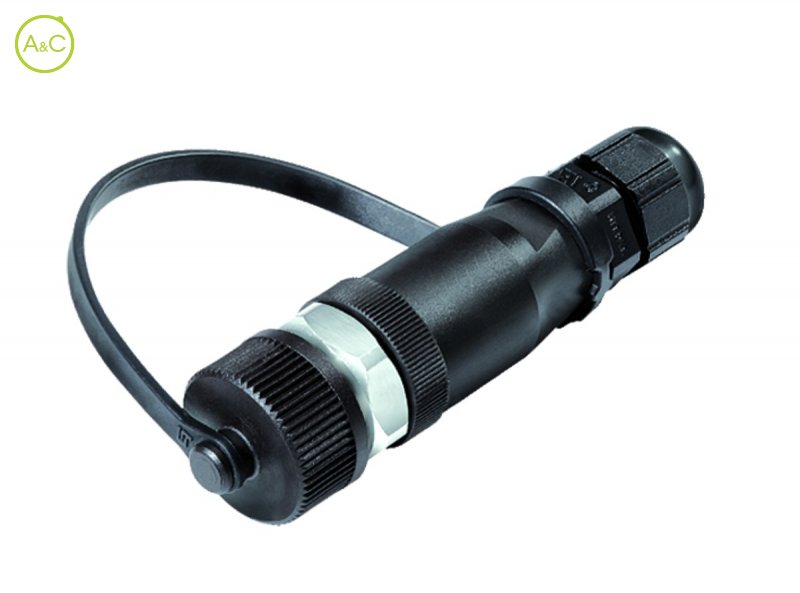

Male cable connector

  • Outdoor, screw clamp

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Number Of Poles

  • 4
Article Number 99 0429 684 04 99 0429 682 04
Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Screw clamp Screw clamp
Wire Section 0.75 mm² 0.75 mm²
Mating Cycles >50 times >50 times
Upper Temperature +100 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Cable Outlet 4-6,5 mm 4-6 mm
Wire Gauge 20 AWG 20 AWG
Product sheet Download product sheet Download product sheet
Characteristics differ between variants of a connector
