Connectors
Back to product overview

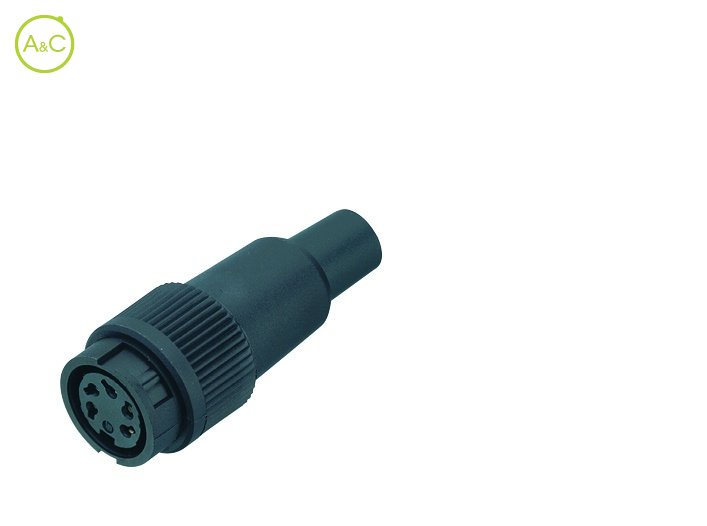

Female cable connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
- 3 DIN
- 4
- 5
- 6 DIN
- 7
- 8 DIN
- 12
- 14
- 16
- 19
- 24
Article Number | 99 0602 02 02 |

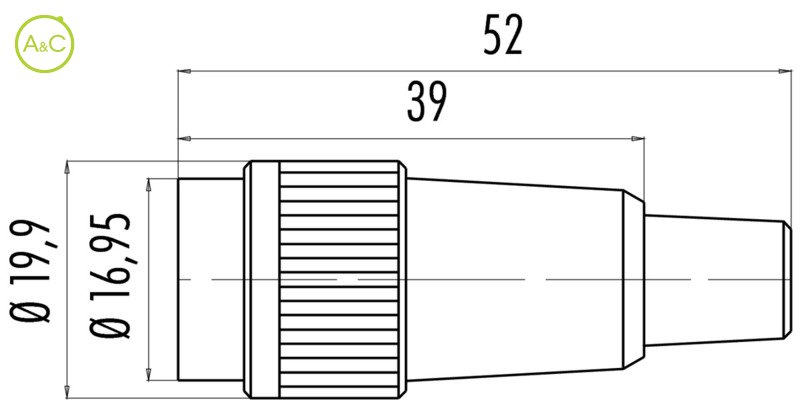

Connector Diameter | 19,9 mm |
Number Of Contacts | 2 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 (32) |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 7 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0606 02 03 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 3 DIN contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 (32) |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 7 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0610 02 04 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 (32) |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 6 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0614 02 05 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 5 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 (32) |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 6 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0618 02 06 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 6 DIN contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 (32) |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 6 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0622 02 07 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 7 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 125 (32) |
Rated Impuls Voltage | 800 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 5 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0646 02 08 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 8 DIN contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.75 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 5 A |
Max. Contact Resistance | 5 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Ag (Silver) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0650 02 12 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 12 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0654 02 14 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 14 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0658 02 16 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 16 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0666 02 19 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 19 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.25 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 3 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Article Number | 99 0670 02 24 |
Connector Diameter | 19,9 mm |
Number Of Contacts | 24 contacts |
Connector Locking System | Bayonet |
Termination | Solder |
Wire Section | 0.14 mm² |
Protection Degree | IP40 |
Mating Cycles | >500 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 60 (32) |
Rated Impuls Voltage | 500 V |
Pollution Degree | 1 (2)* |
Overvoltage Categorie | I (II)* |
Material Group | III |
Rated Current (40°) | 1 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PBT (UL 94 V-0) |
Material Of Housing | PA (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
