Female Terminal AWG 22 to 18
Do you have any questions about this product?
More info on this brand:
JST
Applicable Wire
- AWG 18
- AWG 22 to 20
Article Number | SAIT-A02GF-M064 | SAIT-A02T-M064 |
Upper Temperature | +100 °C | +100 °C |
Lower Temperature | -40 °C | -40 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.75 to 0.8 (AWG #18) mm² | 0.75 to 0.8 (AWG #18) mm² |
Connection Type | Automotive | Automotive |
Pitch / Style | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A | 5 C, DC (0.5mm2, Single Circuit) A |
Rated Voltage (ac/dc) | 14 V | 14 V |
Characteristics differ between variants of a connector

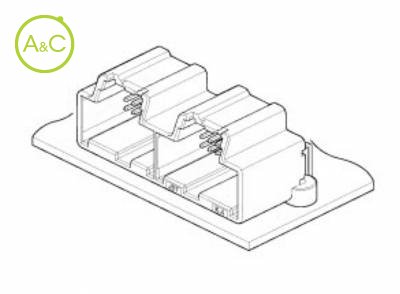

0.64 non-waterproof connector series based on the same footprint of USCAR standard.
This connector has an abundant variation of PC board lock mechanism, circuit number development, and an adoption of designing wire-to-wire type, hence it enables to select the specified connector type according to your needs.
Specifications conform to footprint of USCAR standard.
Independent secondary locking features.
Standard
RoHS Compliant
USCAR
