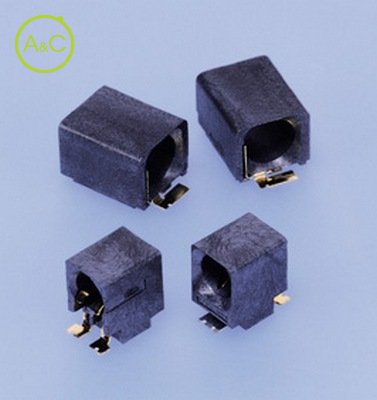

Female Connector for AN Connecot
1.jpg)
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 1
| Article Number | AN-A-2S-32-TF |
| Number Of Contacts | 1 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| General Description | For Antenna Connection |
| Connection Type | Printed Circuit Board Connectors |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

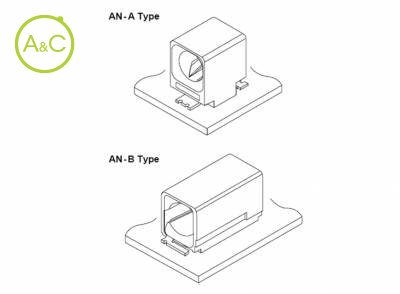

Designed for use in mobile phone and other small communications equipment. This antenna connector will accommodate both; 2.6mm (type A) and 3.35mm (type B) diameter antennas.
Also, as with other JST connectors the material used is a high grade LCP (Liquid Crystal Polymer), which not only makes this suitable for SMT environments but also facilitates product reliability.
Durability
Highly reliable structure guarantees up to 10,000 insertion and withdrawal operations.
Embossed tape for automatic mounting
Supplied in embossed tape packaging for automatic surface mounting operation.
RoHS Compliant
