Top Entry Header THT
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3
Article Number | B03B-VUSS-1 |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 3.96mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 3.96 mm |
Rated Current (ac/dc) | 5 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

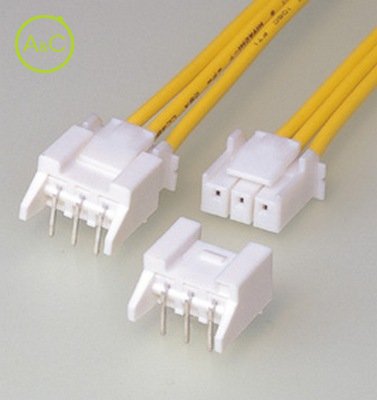

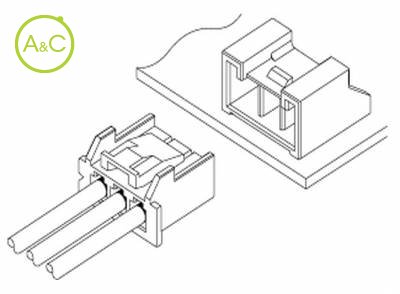

VU connector is small type 3.96mm (.156") pitch PC board connector for large current and has the high reliability in a power supply circuit, considering the fully shrouded connector header structure against 'vibrating connector' and 'distorted extraction'.
Secure locking device
The housing has a locking device to securely hold the header, preventing accidental diSConnection, because of external force that might result from the routing of wires or of vibration, inverse insertion and mating with incorrect circuit.
Shrouded header
Shrouded header provides the longer creepage distance and countermeasure for distorted extraction of connector.
Flanged press pin
Header pin is the flanged press pin, preventing accidental removal of the pins due to distorted extraction of connector.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
