Top Entry Shrouded Header THT
- ZH CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
| Article Number | B2B-ZR | B2B-ZR-3.4 |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B3B-ZR | B3B-ZR-3.4 |
| Number Of Contacts | 3 | 3 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B4B-ZR | B4B-ZR-3.4 |
| Number Of Contacts | 4 | 4 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B5B-ZR | B5B-ZR-3.4 |
| Number Of Contacts | 5 | 5 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B6B-ZR | B6B-ZR-3.4 |
| Number Of Contacts | 6 | 6 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B7B-ZR | B7B-ZR-3.4 |
| Number Of Contacts | 7 | 7 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B8B-ZR | B8B-ZR-3.4 |
| Number Of Contacts | 8 | 8 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B9B-ZR | B9B-ZR-3.4 |
| Number Of Contacts | 9 | 9 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B10B-ZR | B10B-ZR-3.4 |
| Number Of Contacts | 10 | 10 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B11B-ZR | B11B-ZR-3.4 |
| Number Of Contacts | 11 | 11 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B12B-ZR | B12B-ZR-3.4 |
| Number Of Contacts | 12 | 12 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
| Article Number | B13B-ZR | B13B-ZR-3.4 |
| Number Of Contacts | 13 | 13 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm | 1.50 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
| Remark* | / | Header with 3.4 mm long solder tails, suited for the 1.6 mm thick PC board |
Characteristics differ between variants of a connector

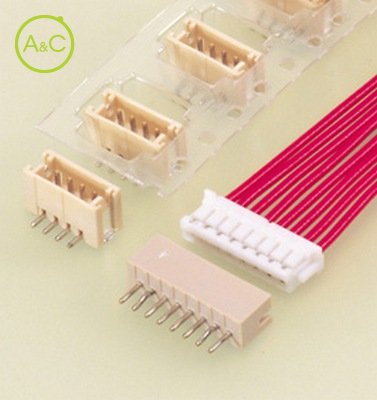

The ZH connector (Sometimes known as the 'JST Micro Connector') is very small with a mounting height of 5.6mm (.220") and a thickness of only 3.5mm (.138").
Contact retention lances on the housing make insertion easier, while the dimple at the centre of the contact ensures reliable contact with the post.
Compact, low profile design
The ZH connector requires only about 45% of the installation space required by the standard JST 2.0mm (.079") pitch connector.
Housing lances
The contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion.
Reliable contact construction
The dimple at the centre of the contact ensures positive contact and low contact resistance at all times, even when the connector is subjected to vibration or distortion. Therefore this connector is ideal for use under low current, low voltage conditions.
Compatible with the ZR insulation displacement connectors

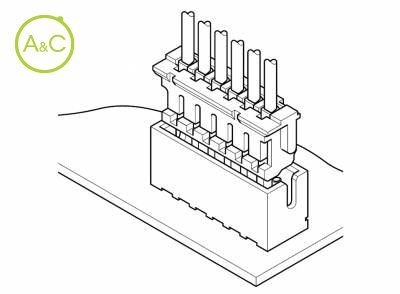

The same shrouded header can be used for either the ZR IDC style connector or the ZH crimp style connector. This allows both types of connector to be used interchangeably without replacing the header.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R9351092
RoHS Compliant
