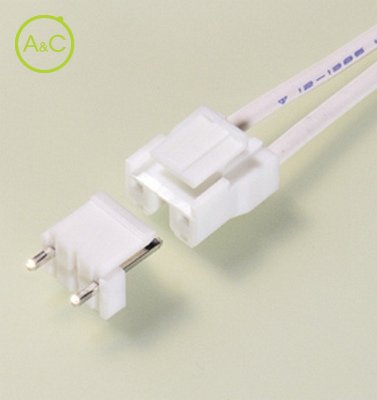

Top Entry Locking Header THT
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
| Article Number | B2P-VA | B2P3-VH |
| Number Of Contacts | 2 | 2 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 7.92mm Pitch Disconnectable Crimp Style | 7.92mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 7.92 mm | 7.92 mm |
| Rated Current (ac/dc) | 7.0 A | 7.0 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Secure locking device | Secure locking device |
Characteristics differ between variants of a connector
This large current carrying capacity connector can be used with primary power supply circuits of consumer electronic products and various other circuits requiring large currents.
Compact connector (with a mounting height of 17.5mm) with a large capacity (7A).
Box contact
This connector has the box-shaped contact. The reliable connector can be used in a wide variety of applications, from low-voltage, low-current signal circuits to power supply circuits having a relatively large capacity.

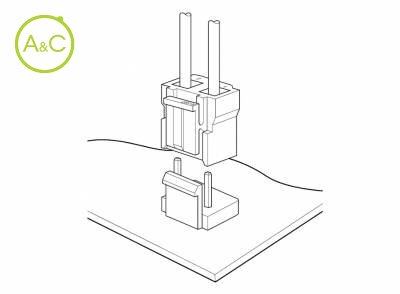

Secure contact and mounting
The housing has an arm lock mechanism which prevents the connector form working loose due to vibration. The mechanism also prevents misinsertion (misalignment or reverse insertion).
Compact connector with a large capacity
Even though this connector has a large current carrying capacity (7A), it is compact, with a mounting height of 17.5mm (.689").
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75122
RoHS Compliant
