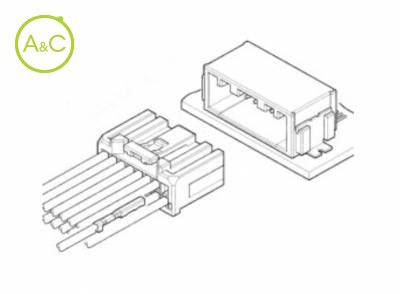

Male Connector Top Entry Double Row for CPT Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 8
| Article Number | BM08B-CPTK-1A-TB |
| Number Of Contacts | 8 |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Connection Type | Automotive |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 3 (0.3mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector
Developed in pursuit of miniaturization and low profile as PC board connector for automobile.
This connector is surface mounting type, having the spring structure on male terminal disproving the conventional concept.
Compact design
2.0mm (.079") pitch is realized miniaturization and low profile as the connector for automobile.
Terminal construction
Female terminal is designed for simple box structure by having spring structure on male terminal.
RoHS Compliant
