Back to product overview
Download product sheet

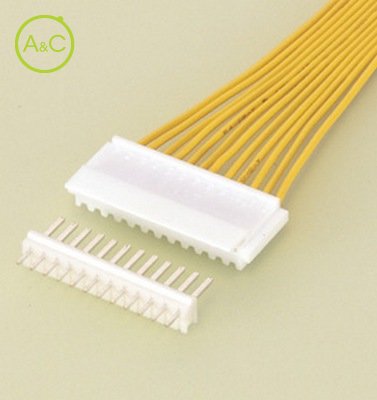

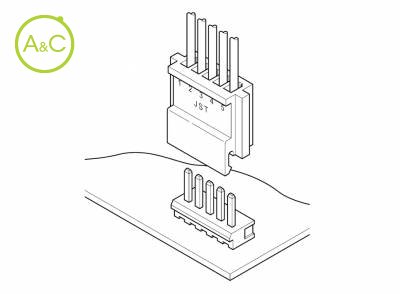

Side Entry Header THT
- NH CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 18
- 20
- 21
- 22
- 24
- 25
| Article Number | BS2P-SHF-1AA |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS3P-SHF-1AA |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS4P-SHF-1AA |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS5P-SHF-1AA |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS6P-SHF-1AA |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS7P-SHF-1AA |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS8P-SHF-1AA |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS9P-SHF-1AA |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS10P-SHF-1AA |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS11P-SHF-1AA |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS12P-SHF-1AA |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS13P-SHF-1AA |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS14P-SHF-1AA |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS15P-SHF-1AA |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS16P-SHF-1AA |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS18P-SHF-1AA |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS20P-SHF-1AA |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS21P-SHF-1AA |
| Number Of Contacts | 21 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS22P-SHF-1AA |
| Number Of Contacts | 22 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS24P-SHF-1AA |
| Number Of Contacts | 24 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | BS25P-SHF-1AA |
| Number Of Contacts | 25 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector
The protected, folded beam contact provides high contact pressure with an over-stress stop feature. Double-sided contact.
Molded-in header with wide, sturdy posts. The header is available in three configurations; top, side and bottom entry.
Superior folded beam construction
This sturdy construction withstands repeated stress, resists permanent deformation, and offers a very long service life.
High reliability is ensured whether the contact pressure is high or low.
This contact design has a large tolerance for variations in mating post thickness and resists deformation when pried.
Double-sided contact
The receptacle contact has a protected entry which eliminates contact damage caused by mismating.
It provides high contact pressure, is free from abnormal stress, and maintains continuity at all times.
It has an extremely long service life due to its folded beam design.
Wide, sturdy post
The post has a large cross-sectional area to resist prying during insertion into printed circuit boards and mating with connector housings.
Molded-in header
The posts are molded into the insulator to provide stability when mounted on printed circuit boards. This also prevents flux from entering the connector during soldering.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified R75086
RoHS Compliant
