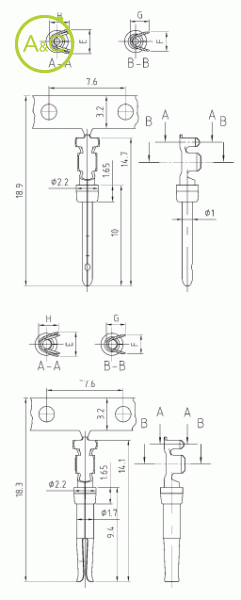

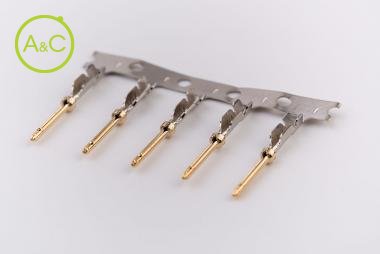

Stamped crimp contacts

  • AWG 24-28
Download product sheet

Packaging

  • Pack, 100 single contacts
  • Reel, 500 contacts
  • Reel, 10000 contacts
Article Number C 15 24 GL G.T C 16 24 GL G.T
Upper Temperature + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C
Contact Plating Gold over Nickel, or selective gold Gold over Nickel, or selective gold
Contact Material Brass and Copper alloy Brass and Copper alloy
Remark* For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ
Extra Information Fully compatible to standard contact Fully compatible to standard contact
Current Rating 5 5
Contact Resistance ≤ 10 m ≤ 10 m
Gender Male Female
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type Crimp 0.032-0.56 mm² Crimp 0.032-0.56 mm²
Quality Class* Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Cross Section 0,22 - 0,08 0,22 - 0,08
Characteristics differ between variants of a connector
