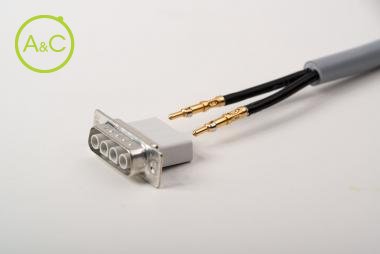

600V D-Sub Crimp Contacts

  • For power applications
Download product sheet

Contact Version

  • stamped
  • turned
Article Number C0616G2 C0612G2 C0516G2 C0512G2
Mating Cycles Turned contacts: 200 (class 2) Stamped contacts: 20 times Turned contacts: 200 (class 2) Stamped contacts: 20 times Turned contacts: 200 (class 2) Stamped contacts: 20 times Turned contacts: 200 (class 2) Stamped contacts: 20 times
Contact Plating Turned contacts: Au over Ni barrier Stamped contacts: tin plated Turned contacts: Au over Ni barrier Stamped contacts: tin plated Turned contacts: Au over Ni barrier Stamped contacts: tin plated Turned contacts: Au over Ni barrier Stamped contacts: tin plated
Contact Material Cu alloy Cu alloy Cu alloy Cu alloy
Current Rating Turned contacts: 20A Stamped contacts: 16 Turned contacts: 20A Stamped contacts: 16 Turned contacts: 20A Stamped contacts: 16 Turned contacts: 20A Stamped contacts: 16
Gender Female Female Male Male
Awg Range AWG 20-12 AWG 20-12 AWG 20-12 AWG 20-12
Awg Size AWG 20-16 AWG 16-12 AWG 20-16 AWG 16-12
Characteristics differ between variants of a connector
