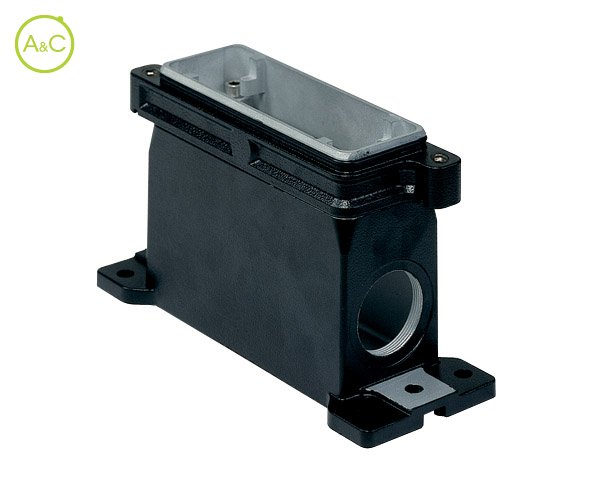

Surface mounting housings, screw locking
Do you have any questions about this product?
More info on this brand:
Ilme
Ilme
- General
| Article Number | CGP 10.29 |
| Protection Degree | IP68 |
| Material Housing | Aluminium |
| Height | 110 mm |
| Length | 169 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE |
| Locking Mechanism | Screw |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Side entry |
| Width | 58 mm |
Characteristics differ between variants of a connector
