High Density crimp technology

Download product sheet

Number Of Poles

  • 15
  • 26
  • 44
  • 62
  • 78

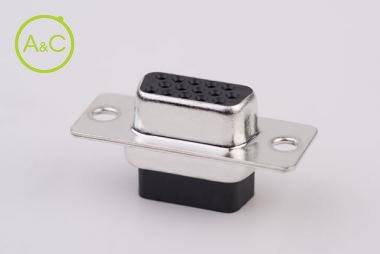

Article Number CHDT 15 P CHT 15 P
Number Of Contacts 15 15
Upper Temperature +125 °C +125 °C
Lower Temperature -55 °C -55 °C
Housing Material St. tinned St. tinned
Insulation Resistance ≥10 MΩ ≥10 MΩ
Contact Resistance ≤10m ≤10m
Gender Male Female
Insulator Material UL 94-V0 tested plastic UL 94-V0 tested plastic
Mating/unmating Force Fully Loaded Connector ≤50 ≤50
Air And Creepage Distance min. 0,6 mm min. 0,6 mm
Test Voltage U Eff 1000 1000
Working Voltage 60 60
Characteristics differ between variants of a connector
