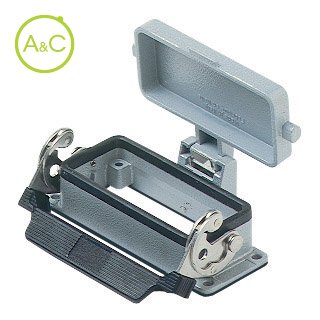

Bulkhead mounting housings
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CHI 16 LS |
Protection Degree | IP65 |
Material Housing | Aluminium |
Height | 29 mm |
Length | 115.5 |
Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 40 P + PE; CT-CTS 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CT-CTSE 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
Inflammability Class Of Insulation Material Acc. With Ul94 | V2 |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Below |
Width | 45.5 mm |
Characteristics differ between variants of a connector
