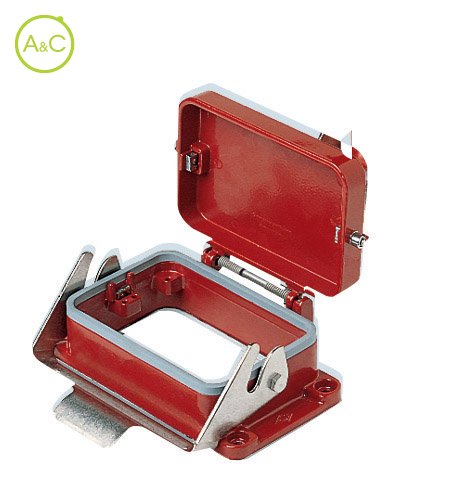

Bulkhead mounting housings

  • With lever and cover
  • Aluminium

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

  • General
Article Number CHIR 48 LS
Protection Degree IP65
Material Housing Aluminium
Height 42 mm
Length 167.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CNE...RY 48P+PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Below
Width 93 mm
Characteristics differ between variants of a connector
