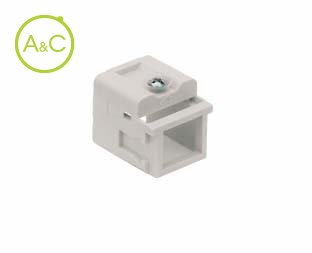

Adaptor for RJ45 female connector in fixed enclosures
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CJ KF* |
Number Of Poles | 10 |
Connection Type | Crimp connection |
Contact Type | Female |
Remark* | Can only be used in I/IAP enclosures |
Extra Information | Contact insert without contacts |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 120 °C |
Min. Cross Section Without End Sleeve | 0.34 mm² |
Max. Cross Section Without End Sleeve | 0.38 mm² |
Required Housing | High protection IP68 size 21.21 |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Max. Rated Current | 2.1 A |
Nominal Rated Voltage | 50 V |
Characteristics differ between variants of a connector
