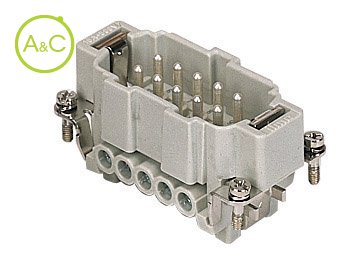

Inserts, 10P + PE, Screw terminal connections
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CNEM 10 T |
Pollution Degree | 3 |
Number Of Poles | 10 |
Connection Type | Screw connection |
Contact Type | Male |
Extra Information |
With protective conductor With wire protection |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Min. Cross Section Without End Sleeve | 0.5 mm² |
Max. Cross Section Without End Sleeve | 4 mm² |
Required Housing |
C-type size 57.27 C7 size 57.27 Simplex size 57.27 V-Type size 57.27 BIG size 57.27 T-type size 57.27 T-type/W size 57.27 T-type/H size 57.27 T-type/C size 57.27 W-Type size 57.27 EMC size 57.27 Central Lever size 57.27 high protection IP68 LS-type size 57.27 COB size 57.27 |
Diameter Male Contact | 2.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Material Contact | Brass |
Plating Of Contact | Silver |
Max. Rated Current | 16 A |
Nominal Rated Voltage | 500 V |
Over Voltage Category | III |
Rated Surge Voltage | 6 kV |
Characteristics differ between variants of a connector
