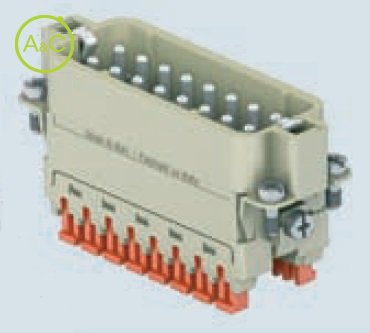

Inserts, 16P + PE, Spring terminal connections
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CSAHM 16 |
Pollution Degree | 3 |
Number Of Poles | 16 |
Connection Type | Spring clamp connection |
Contact Type | Male |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Min. Cross Section With End Sleeve | 0.14 mm² |
Max. Cross Section With End Sleeve | 1.5 mm² |
Min. Cross Section Without End Sleeve | 0.14 mm² |
Max. Cross Section Without End Sleeve | 2.5 mm² |
Required Housing |
IL-Brid size 66.16 W-type size 66.16 EMC size 66.16 COB size 66.16 |
Diameter Male Contact | 2.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Max. Rated Current | 16 A |
Nominal Rated Voltage | 250 V |
Over Voltage Category | III |
Rated Surge Voltage | 4 kV |
Characteristics differ between variants of a connector
