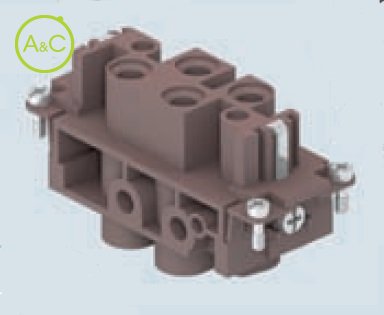

Inserts, 4P + PE, Screw terminal connection
Do you have any questions about this product?
More info on this brand:
Ilme
Ilme
- General
| Article Number | CXF 4/0 RY |
| Pollution Degree | 3 |
| Number Of Poles | 4 |
| Connection Type | Screw connection |
| Contact Type | Female |
| Extra Information | With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 180 °C |
| Min. Cross Section With End Sleeve | 4 mm² |
| Max. Cross Section With End Sleeve | 16 mm² |
| Required Housing | 180°C size 77.27 |
| Diameter Male Contact | 4 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 80 A |
| Nominal Rated Voltage | 690 V |
| Over Voltage Category | IV |
| Rated Surge Voltage | 8 kV |
Characteristics differ between variants of a connector
