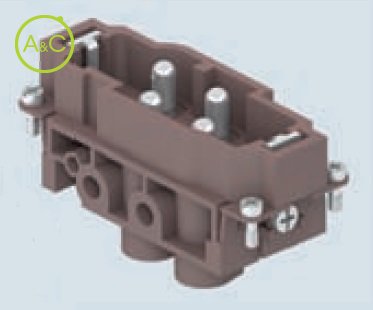

Inserts, 4+2P + PE, Screw terminal connection
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CXM 4/2 RY |
Pollution Degree | 3 |
Number Of Poles | 4+2 |
Connection Type | Screw connection |
Contact Type | Male |
Extra Information | With protective conductor |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 180 °C |
Min. Cross Section With End Sleeve | 4P: 4 mm² 2P: 0.25 mm² |
Max. Cross Section With End Sleeve | 4P: 16 mm² 2P: 2.5 mm² |
Required Housing | 180°C size 77.27 |
Diameter Male Contact | 4 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Material Contact | Brass |
Plating Of Contact | Silver |
Max. Rated Current | 4P: 80 A 2P: 16 A |
Nominal Rated Voltage | 4P: 690 V 2P: 400 V |
Over Voltage Category | IV |
Rated Surge Voltage | 4P: 8 kV 2P: 6 kV |
Characteristics differ between variants of a connector
