Top Entry Shrouded Header THT Single Row
- CZH/CZHW CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
| Article Number | B02B-CZHK-B-1 |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B03B-CZHK-B-1 |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B04B-CZHK-B-1 |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B05B-CZHK-B-1 |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B06B-CZHK-B-1 |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B07B-CZHK-B-1 |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B08B-CZHK-B-1 |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B09B-CZHK-B-1 |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B10B-CZHK-B-1 |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B11B-CZHK-B-1 |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B12B-CZHK-B-1 |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B13B-CZHK-B-1 |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B14B-CZHK-B-1 |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B15B-CZHK-B-1 |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B16B-CZHK-B-1 |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B17B-CZHK-B-1 |
| Number Of Contacts | 17 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B18B-CZHK-B-1 |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B19B-CZHK-B-1 |
| Number Of Contacts | 19 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
| Article Number | B20B-CZHK-B-1 |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.50 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 100 V |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT |
Characteristics differ between variants of a connector

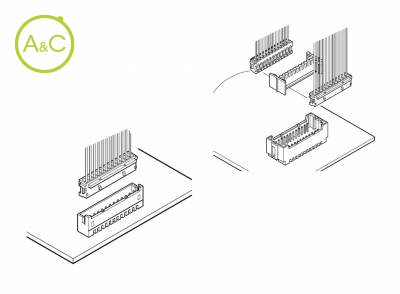

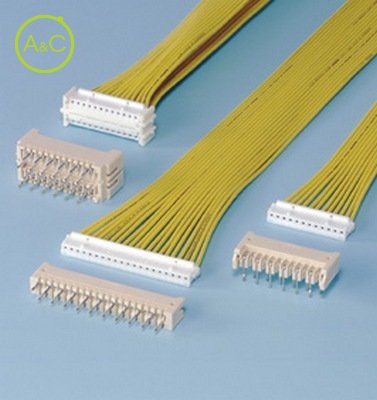

Mating with common header for 1.5mm (.059") pitch IDC type CZ connector, these crimping type connectors realize same figure and high density mounting as CZ Family.
Housing Lance
The housing lance is adopted and it is easy to insert contact into housing and to confirm, whether contact is completely inserted, by visual inspection.
Interchangeability
Header for CZH connector is the common header for 1.5mm (.059") pitch IDC type CZ connector and CZW connector.
Miniaturized and low profiled
Assembled height on PCB is 7.3mm (.287") [for single top entry type], 4.4mm (.173") [for single side entry type], and 8.3mm (.327") [for double top entry type]. Also connector pitch is 1.5mm (.059"). Low profile, miniaturization and high density mounting are realized.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
