Surface mounting housings

With signle lever and cover, High construction
Aluminium, PG Entry, Sideways

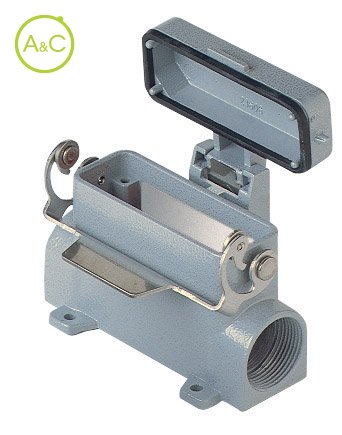

CZAP 25 LS

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1x16PG
1x21PG
2x16PG
2x21PG

Article Number	CZAP 25 LS
Protection Degree	IP65
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	50 mm

Article Number	CZAP 25 LS21
Protection Degree	IP65
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	50 mm

Article Number	CZAP 25 LS2
Protection Degree	IP65
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	50 mm

Article Number	CZAP 25 LS221
Protection Degree	IP65
Material Housing	Aluminium
Height	57 mm
Length	101
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	50 mm

Characteristics differ between variants of a connector
