Connector for DIMM Socket
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | DM-2D4-N3200 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.27mm Pitch Socket for DIMM |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.27 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

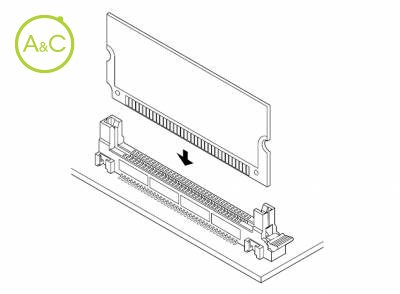

Standardized by the JEDEC (MO-160). The DM connector is the straight type of the DIMM socket, applicable to the module PC board whose operating voltage is 3.3V.
Easy module ejecting
The module can be disengaged easily by using the eject button.
14mm (.551") height
With its 14mm (.551") height, the DM connector is applicable to various equipment.
Standards
UL Recognized E60389
RoHS Compliant
