Tab Housing Panel Mounting Double Row
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 6
- 8
- 10
- 12
- 16
- 20
Article Number | F31MDP-06V-K |
Number Of Contacts | 6 |
Upper Temperature | +105 °C |
Lower Temperature | -55 °C |

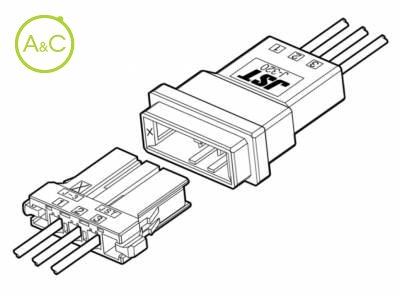

General Description | 3.81mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Factory Automation Connectors |
Pitch / Style | 3.81 mm |
Rated Current (ac/dc) | 15 A |
Rated Voltage (ac/dc) | 250 V |
Characteristics differ between variants of a connector

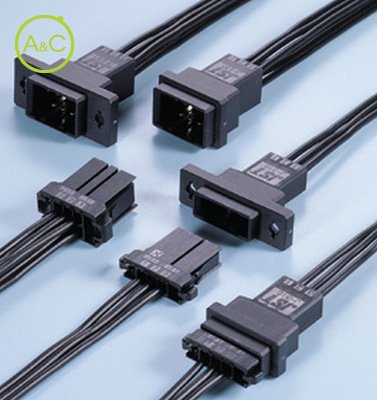

Connectors for signal circuits or power supply circuits, applicable to the factory automation, heavy electric machinary, and other industrial equipment in general. In spite of the various kinds of housings available, their contacts are designed to be common. Thus the applicable tooling can be unified.
Double-spring construction
For superior contact reliability, the receptacle contact has a double-string construction consisting of a main spring and a contact pressure adjustment spring.
In addition, a spring stopper is incorporated in the connector to facilitate resistance to excessive pressure.
Housing lances
Lances are incorporated into the housing design to secure the contacts, therefore keeping contact insertion force low and avoiding contact deformation.
Secure locking method
When housings are mated, a clear locking sound can be heard to ensure secure engagement.
Recognition mark
Both contacts and application tools have identification marks to prevent incorrect combinations.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV J-50015641
RoHS Compliant
