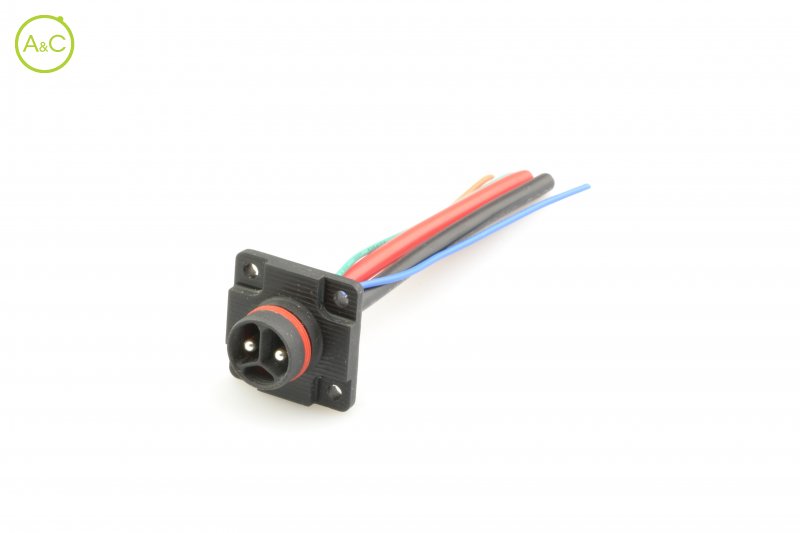

Male panel mount connector
Do you have any questions about this product?
More info on this brand:
Higo
Higo
Number Of Poles
- 6 (2+4)
| Article Number | F618AG C 00 GA 0300 |
| Color | Black |

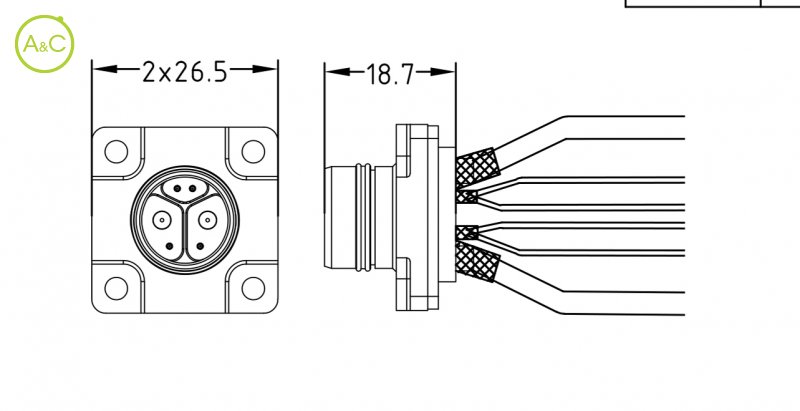

| Connector Diameter | 26,5 x 26,5 mm |
| Wire Section | 2 x 3,3 + 4 x 0,2 mm² |
| Cable Length | 300 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper alloy |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 30 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Silver plated |
Characteristics differ between variants of a connector
