Plug for FCT Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 26
- 34
- 40
- 60
| Article Number | FCTP-26V-S |
| Number Of Contacts | 26 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Connector for Flat Cables |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Remark* | Secure locking device |
Characteristics differ between variants of a connector

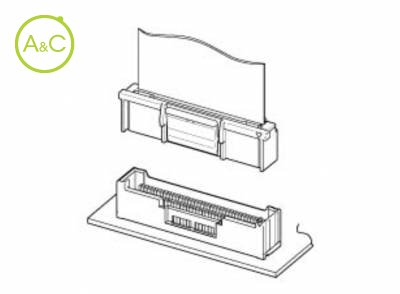

This connector realizes high cost performance, to be designed with the new connector concept that the conductors of flat cable that was fixed up in the plug housing are directly touched to the base contacts.
Countermeasure to short circuit by whisker
High reliability design by both side contact
Low insertion force
With secure locking device
RoHS Compliant
