Side Entry Type THT Connector
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 4-40
Article Number | (*)FE-ST-VK-N |
Number Of Contacts | 4-40 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Pitch Non-ZIF Connector For FFC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 200 V |
Pcb Mount Style | Through-hole Technology (THT) |
Remark** | A two-digit number (04 to 40) representing the number of circuits should be inserted in (*) |
Characteristics differ between variants of a connector

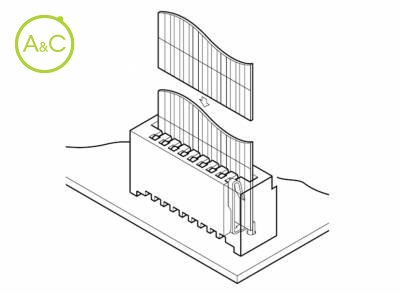

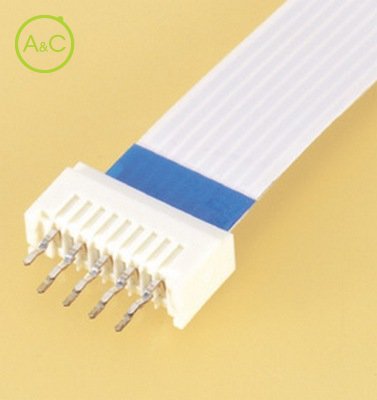

The FE connector ensures easy, secure connection of flexible flat cables (FFC). This compact connector is 4.8mm (.189") wide, 7.5mm (.295") high, and provides high contact presure even though little force is required for insertion. The result is smooth insertion and reliable contact performance. The connector is useful in making personal computers, VCRs and car stereo systems smaller and lighter.
Low insertion force and high contact pressure
FFC leads can be inserted with little spring force, yet the contact pressure is high once they are inserted.
Snap-in connection
FFC leads are secured after being gently inserted in the connector.
Temporary board retention feature
The contacts solder dip section has a retention mechanism that allows the connector to be temporarily mounted on the PC board and prevents the connector from floating when soldered.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
