Retainer for FEL Connector
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 8
- 13
- 20
Article Number | FEL2R-13BG |
Number Of Contacts | 13 |
Upper Temperature | +90 °C |
Lower Temperature | -40 °C |
General Description | 2.0mm Pitch ZIF Connector for FPC |
Connection Type | Automotive |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 0.6 to 1.5 A |
Rated Voltage (ac/dc) | 200 V |
Characteristics differ between variants of a connector
The FEL connector is 2.0mm (.079") pitch FPC connector suitable for environments in automotive compartment. The FEL connector is different from the conventional ZIF type connector, reliable connection is greatly improved by using a general housing lock for an automotive connector.
The FEL connector passed various types of durability tests for automobile
High contact force ensures contact reliability and allows stability of performance in various applications.
Secure mating process

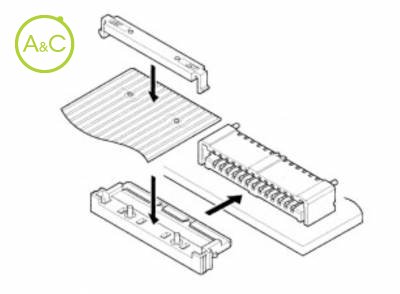

A FPC is fixed by a plug housing and a retainer and then mated to a male connector.
It prevents problems such as inverse, incomplete insertion, which occur in the conventional ZIF type connector.
Multi-entry type
In addition to top entry type, side normal type whose FPC is positioned with its mating surface facing upward and side reverse type whose FPC is positioned with its mating surface facing down are available for mounting designs.
RoHS Compliant
