Side Entry Type THT Connector Normal

  • FMN CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Number Of Poles

  • 4-40
Article Number (*)FMN-STK-A
Number Of Contacts 4-40
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1mm Pitch Non-ZIF Connector For FFC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Remark** A two-digit number (04 to 40) representing the number of circuits should be inserted in (*)
Characteristics differ between variants of a connector

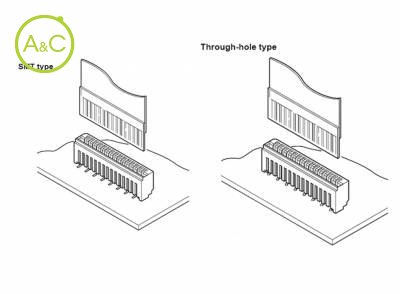

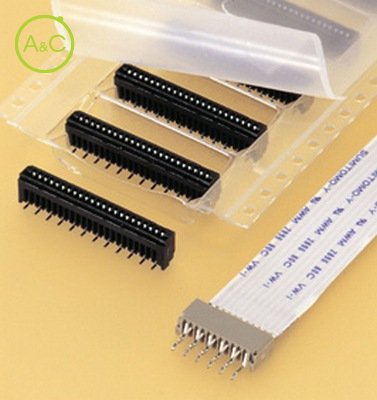

Both Dip (through-hole) and SMT types are available. SMT type connectors have heat-resistant housings so that solder reflow is possible. Compact 3.0mm (.118") high and 5.1mm (.201"). Low insertion force There are no slides or leavers to operate on thie reduced insertion force connector. It requires 1/2 the insertion force of JSTs conventional FFC connectors, but retains stable contact performance when subjected to environmental and mechanical stresses. Both through-hole and SMT types are available SMT type connectors have heat-resistant housings so that solder reflow is possible. They also have solder tabs for extra strength. Embossed tape for automatic mounting The SMT type FMN connector is supplied in embossed tape packaging, for mounting by automatic placement machines. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
