Female Connector

HCH CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	HCMPB-04-K
Number Of Contacts	4
Upper Temperature	+120 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	HCHFB-09-KE
Number Of Contacts	9
Upper Temperature	+120 °C
Lower Temperature	-40 °C
General Description	2.54mm Pitch Disconnectable Crimp Style
Connection Type	Automotive
Pitch / Style	2.54 mm
Rated Current (ac/dc)	5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

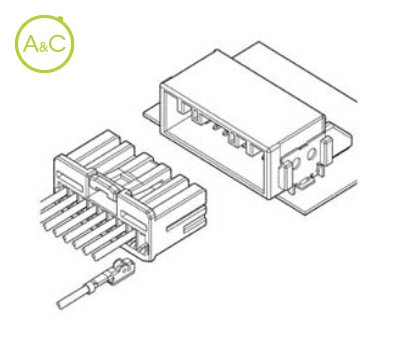

2.54mm pitch, 0.64 unsealed connector for automotive corresponding to the surface mounting. Miniturization Using the short length terminal, the miniaturization is realized. Surface mounting Corresponding to the surface mounting (lead-free), mounting workability is improved. Reliability High reliability ensured by using proven female terminal in the automotive electrical equipment. RoHS Compliant
