SMT Fine Wire Connectors

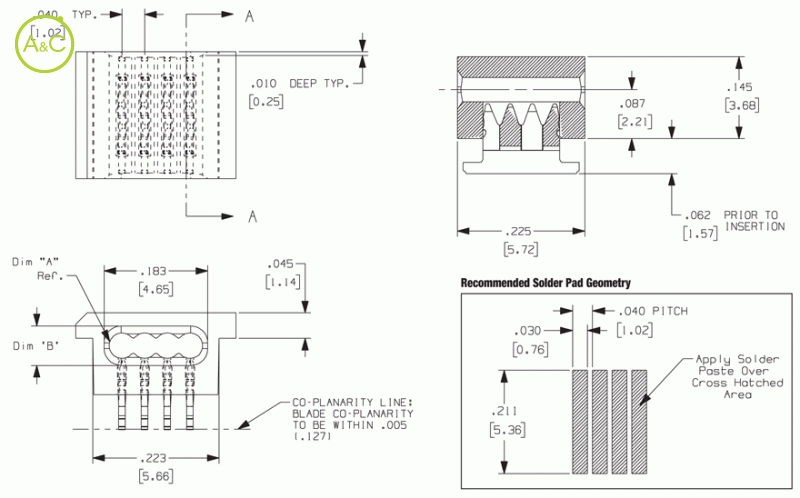

IPC-4-35

IPC-4-35

IPC-4-35

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

More info on this brand:

Packaging

Loose
Small reeled
Taped

Article Number	IPC-4-35	IPC-4-45
Contact Plating	100% Tin over Copper	100% Tin over Copper
Contact Material	C26000 Brass	C26000 Brass
Insulation Resistance	> 1 x 109Ω @ 500 VDC MΩ	> 1 x 109Ω @ 500 VDC MΩ
Current Rating	2 Amperes	2 Amperes
Wire Accommodation	From 32 AWG to 28 AWG solid, stranded or tinsel wire; with insulation diameter of 0.025" - 0.032"	From 32 AWG to 26 AWG solid, stranded or tinsel wire; with insulation diameter of 0.033" - 0.043" IPC-4-45 has an ID chamfer in the plastic housing.
Contact Resistance	< 20 mΩ	< 20 mΩ
Withstanding Voltage	500 VRMS @ Sea Level	500 VRMS @ Sea Level
Insulation Material	PPS GS-40 40% glass filled	PPS GS-40 40% glass filled
Ul Flammability Rating	94V-0	94V-0
Termination Force	Approx. 80 lbs (for 4 wire)	Approx. 80 lbs (for 4 wire)
Reflow Temperature	500°F Max (260°C Max)	500°F Max (260°C Max)
Operating Temperature	-67°F to 221°F (-55°C to 105°C)	-67°F to 221°F (-55°C to 105°C)
Pieces Per Reel (loose Part No.)	NA	NA
Pieces Per Reel (taped Part No.)	/	/
Pieces Per Reel (small Reel Part No.)	/	/
Product sheet	Download product sheet	Download product sheet

Article Number	IPC-4-35-T-SR	IPC-4-45-T-SR
Contact Plating	100% Tin over Copper	100% Tin over Copper
Contact Material	C26000 Brass	C26000 Brass
Insulation Resistance	> 1 x 109Ω @ 500 VDC MΩ	> 1 x 109Ω @ 500 VDC MΩ
Current Rating	2 Amperes	2 Amperes
Wire Accommodation	From 32 AWG to 28 AWG solid, stranded or tinsel wire; with insulation diameter of 0.025" - 0.032"	From 32 AWG to 26 AWG solid, stranded or tinsel wire; with insulation diameter of 0.033" - 0.043" IPC-4-45 has an ID chamfer in the plastic housing.
Contact Resistance	< 20 mΩ	< 20 mΩ
Withstanding Voltage	500 VRMS @ Sea Level	500 VRMS @ Sea Level
Insulation Material	PPS GS-40 40% glass filled	PPS GS-40 40% glass filled
Ul Flammability Rating	94V-0	94V-0
Termination Force	Approx. 80 lbs (for 4 wire)	Approx. 80 lbs (for 4 wire)
Reflow Temperature	500°F Max (260°C Max)	500°F Max (260°C Max)
Operating Temperature	-67°F to 221°F (-55°C to 105°C)	-67°F to 221°F (-55°C to 105°C)
Pieces Per Reel (loose Part No.)	NA	NA
Pieces Per Reel (taped Part No.)	/	/
Pieces Per Reel (small Reel Part No.)	100	100
Product sheet	Download product sheet	Download product sheet

Article Number	IPC-4-35-T	IPC-4-45-T
Contact Plating	100% Tin over Copper	100% Tin over Copper
Contact Material	C26000 Brass	C26000 Brass
Insulation Resistance	> 1 x 109Ω @ 500 VDC MΩ	> 1 x 109Ω @ 500 VDC MΩ
Current Rating	2 Amperes	2 Amperes
Wire Accommodation	From 32 AWG to 28 AWG solid, stranded or tinsel wire; with insulation diameter of 0.025" - 0.032"	From 32 AWG to 26 AWG solid, stranded or tinsel wire; with insulation diameter of 0.033" - 0.043" IPC-4-45 has an ID chamfer in the plastic housing.
Contact Resistance	< 20 mΩ	< 20 mΩ
Withstanding Voltage	500 VRMS @ Sea Level	500 VRMS @ Sea Level
Insulation Material	PPS GS-40 40% glass filled	PPS GS-40 40% glass filled
Ul Flammability Rating	94V-0	94V-0
Termination Force	Approx. 80 lbs (for 4 wire)	Approx. 80 lbs (for 4 wire)
Reflow Temperature	500°F Max (260°C Max)	500°F Max (260°C Max)
Operating Temperature	-67°F to 221°F (-55°C to 105°C)	-67°F to 221°F (-55°C to 105°C)
Pieces Per Reel (loose Part No.)	NA	NA
Pieces Per Reel (taped Part No.)	900	900
Pieces Per Reel (small Reel Part No.)	/	/
Product sheet	Download product sheet	Download product sheet

Characteristics differ between variants of a connector
