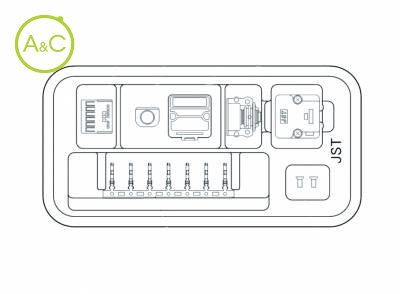

Connector Kit for JFA Connector J3700 series
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Cable Diameter
- 8.0
- 9.0
Article Number | J37-06FMH-8KL-1L-CF | J37-06FMH-8KL-1M-CF | J37-06FMH-8KL-1S-CF |
Number Of Contacts | 6 | 6 | 6 |
Upper Temperature | +105 °C | +105 °C | +105 °C |
Lower Temperature | -55 °C | -55 °C | -55 °C |
General Description | 3.8mm Pitch Connector Kit for Motor | 3.8mm Pitch Connector Kit for Motor | 3.8mm Pitch Connector Kit for Motor |
Connection Type | Factory Automation Connectors | Factory Automation Connectors | Factory Automation Connectors |
Pitch / Style | 3.8 mm | 3.8 mm | 3.8 mm |
Rated Current (ac/dc) | 10 A | 10 A | 10 A |
Rated Voltage (ac/dc) | 250 V | 250 V | 250 V |
Remark* | Waterproof | Waterproof | Waterproof |
Extra Information | Nominal: L | Nominal: M | Nominal: S |
Characteristics differ between variants of a connector
6 Circuit connector for power supply of servomotor.
This connector is supplied in kits, including all components.
Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5)
Standards
UL Recognized E60389
RoHS Compliant
