Connectors
Back to product overview
Download product sheet
Download step file

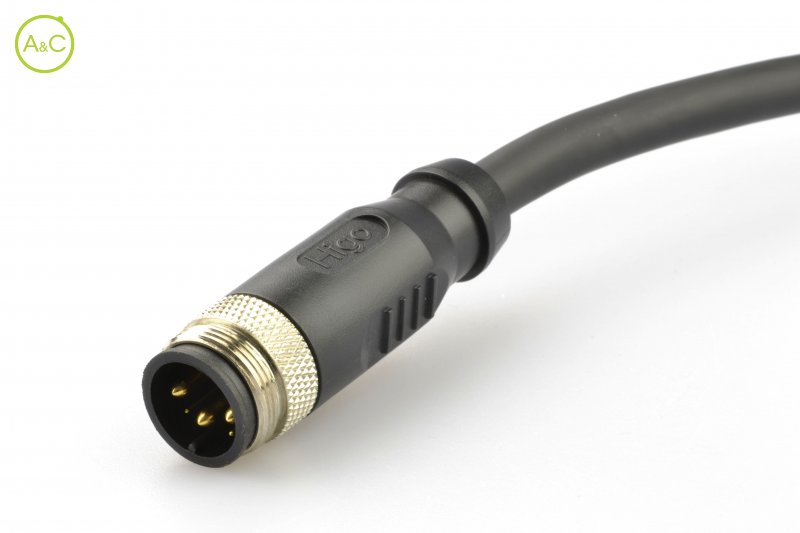

Male cable connector
Do you have any questions about this product?
More info on this brand:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 10 (3+7)
Article Number | L1019AG P 00 AZ 1000 |
Color | Black |
Connector Diameter | 19 mm |
Wire Section | 3 x 4,0 + 7 x 0,14 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Brass |
Cable Diameter | 8.5 mm |
Insulation Wire | Teflon |
Remark | Other cable length/type on request |
Rated Current | 30 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |

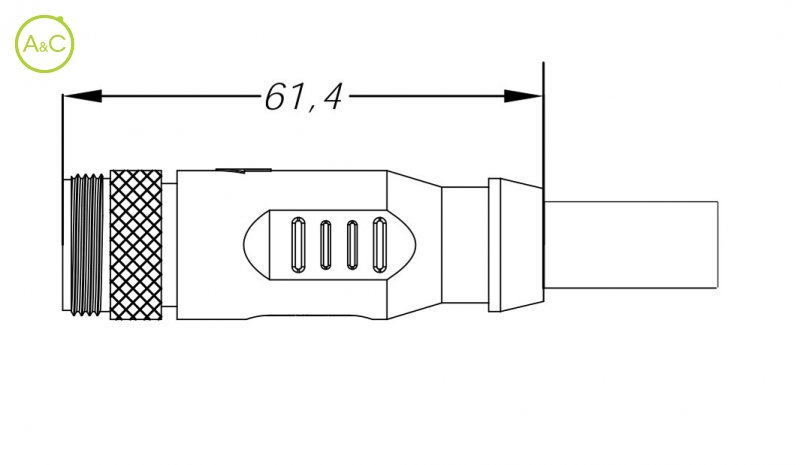

Fitting Length | 114 mm |
Material Jacket | PVC |
Characteristics differ between variants of a connector
