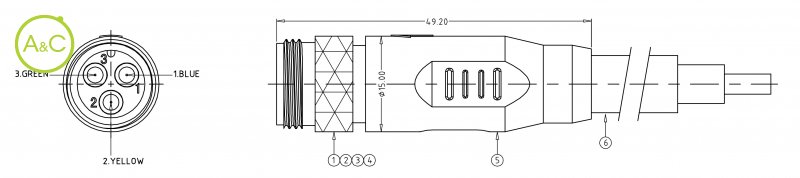

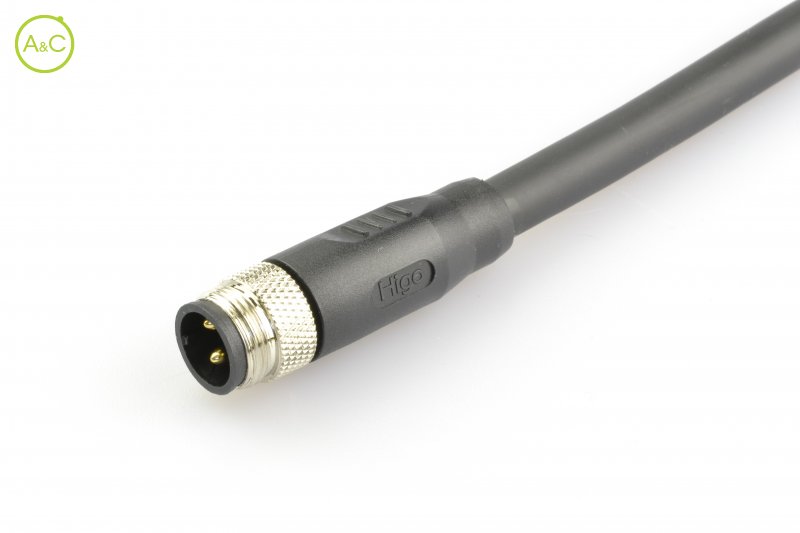

Male cable connector

Do you have any questions about this product?

Download product sheet Download step file

More info on this brand:

Article Number	L315AG P 01 B8 1000
Color	Black
Connector Diameter	15 mm
Wire Section	3 x 4,0 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Brass
Cable Diameter	9 mm
Insulation Wire	Teflon
Remark	Other cable length/type on request
Rated Current	35 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	90 mm
Material Jacket	PVC

Characteristics differ between variants of a connector
