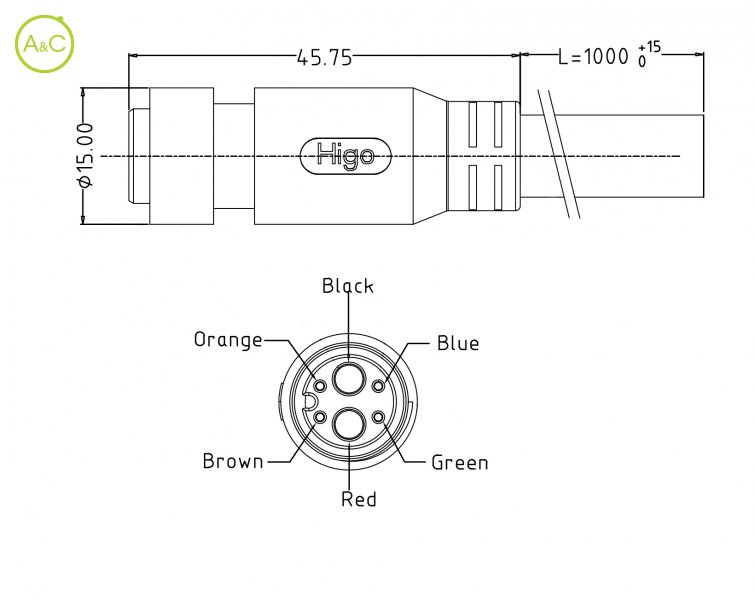

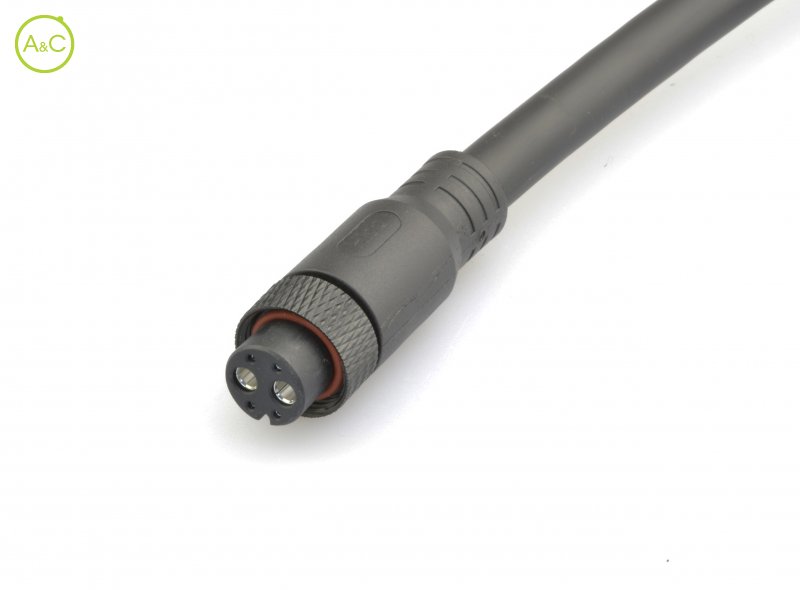

Female cable connector
Do you have any questions about this product?
More info on this brand:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 6(2+4)
Article Number | L615AM P 00 DC 1000 |
Color | Black |
Connector Diameter | 15 mm |
Wire Section | 2 x 4,0 + 4 x 0,2 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Phosphor bronze |
Insulation Wire | PTFE |
Remark | Other cable length/type on request |
Rated Current | 40 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 77 mm |
Material Jacket | PVC |
Characteristics differ between variants of a connector
