Hoods with 2 pegs, high construction

Side entry
Aluminium, Metric entry

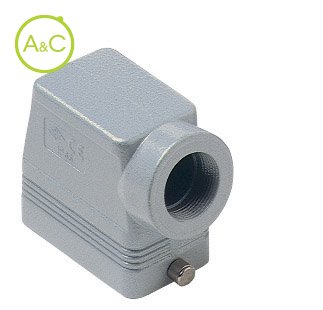

MAO 10 L32

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM32
1xM40

Article Number	MAO 10 L32
Protection Degree	IP66
Material Housing	Aluminium
Height	70 mm
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Article Number	MAO 10 L40
Protection Degree	IP66
Material Housing	Aluminium
Height	70 mm
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Characteristics differ between variants of a connector
