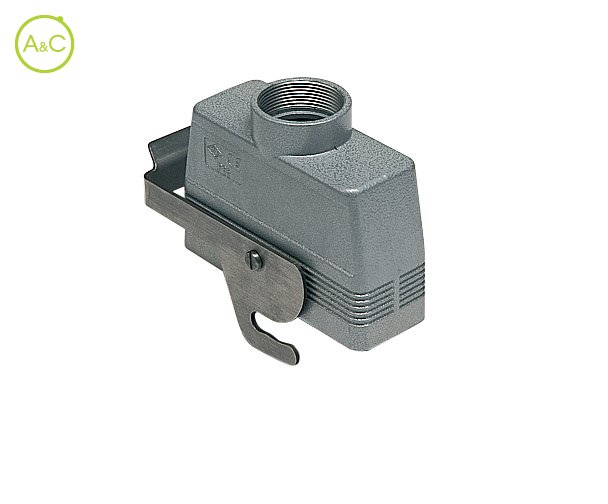

Hoods with central lever, high construction

  • Top entry
  • Aluminium, Metric entry

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Entry

  • 1xM25
  • 1xM32
Article Number MAV 06 YX25
Protection Degree IP65
Material Housing Aluminium
Height 87 mm
Length 60
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Central clamp
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Characteristics differ between variants of a connector
