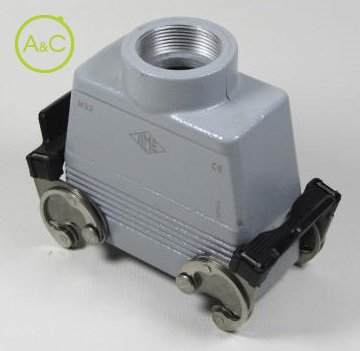

Hoods with 2 levers, high construction
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
Entry
- 1XM32
- 1xM40
Article Number | MAV 16 X32* |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 91 mm |
Remark* | May be combined with enclosures: CHI 16 CS; CHI 16 CP; CHI 16 C; CHP 16 CS; CHP 16 CP; CHP 16 C; CAP 16 CS; CAP 16 CP; CAP 16 C; MHP 16 CS; MHP 16 CP; MAP 16 CS; MAP 16 CP |
Length | 93.5 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
Locking Mechanism | Double locking levers |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 59 mm |
Characteristics differ between variants of a connector
