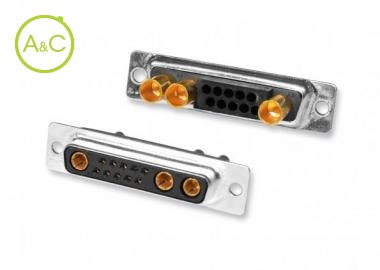

Mixed layout

  • Crimp contacts
Download product sheet

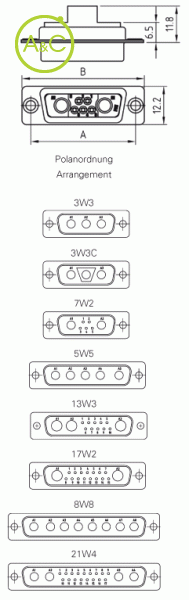

Contact Arrangement

  • 3W3
  • 3W3C
  • 5W5
  • 7W2
  • 8W8
  • 13W3
  • 17W2
  • 21W4
Article Number MDT3W3P MT3W3S
Upper Temperature High power contacts: +125 °C Coax contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature High power contacts: -55 °C Coax contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Housing Material / /
Insulation Resistance High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Contact Resistance High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender Male Female
Insulator Material / /
Retaining Clip Material High power contacts: CuBE Coax Contacts: CuBE High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) / /
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) / /
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) / /
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) / /
Air And Creepage Distance High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm
Characteristics differ between variants of a connector
