Header THT Tin plated Top entry
- RA CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
Number Of Poles
- 10
- 16
- 20
- 26
- 30
- 34
- 40
- 50
- 60
Article Number | RA-H101TD-1190 |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 300 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | RA-H161TD-1190 |
Number Of Contacts | 16 |
Upper Temperature | +85 °C |
Lower Temperature | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 300 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | RA-H201TD-1190 | RX-H201TD-1190 |
Number Of Contacts | 20 | 20 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -55 °C | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 1.0 A | 1.0 A |
Rated Voltage (ac/dc) | 300 V | 300 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
Article Number | RA-H261TD-1190 |
Number Of Contacts | 26 |
Upper Temperature | +85 °C |
Lower Temperature | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 300 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | RA-H301TD-1190 |
Number Of Contacts | 30 |
Upper Temperature | +85 °C |
Lower Temperature | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 300 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | RA-H341TD-1190 | RK-H341TD-0190 | RX-H341TD-1190 |
Number Of Contacts | 34 | 34 | 34 |
Upper Temperature | +85 °C | +85 °C | +85 °C |
Lower Temperature | -55 °C | -55 °C | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 1.0 A | 1.0 A | 1.0 A |
Rated Voltage (ac/dc) | 300 V | 300 V | 300 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
Article Number | RA-H401TD-1190 | RK-H401TD-0190 | RX-H401TD-1190 |
Number Of Contacts | 40 | 40 | 40 |
Upper Temperature | +85 °C | +85 °C | +85 °C |
Lower Temperature | -55 °C | -55 °C | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 1.0 A | 1.0 A | 1.0 A |
Rated Voltage (ac/dc) | 300 V | 300 V | 300 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
Article Number | RA-H501TD-1190 | RX-H501TD-1190 |
Number Of Contacts | 50 | 50 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -55 °C | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 1.0 A | 1.0 A |
Rated Voltage (ac/dc) | 300 V | 300 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
Article Number | RA-H601TD-1190 | RX-H601TD-1190 |
Number Of Contacts | 60 | 60 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -55 °C | -55 °C |
General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
Pitch / Style | 2.54 mm | 2.54 mm |
Rated Current (ac/dc) | 1.0 A | 1.0 A |
Rated Voltage (ac/dc) | 300 V | 300 V |
Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

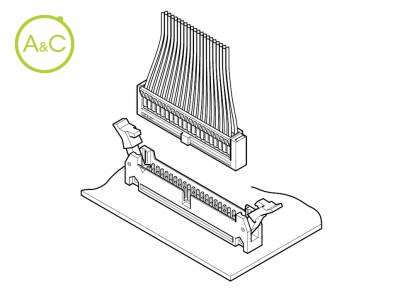

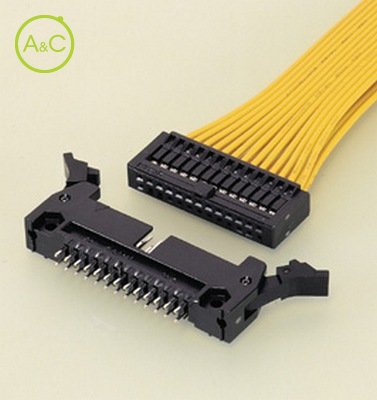

Crimp style receptacles that are designed to mate with headers conforming to MIL-C-83503.
The locking levers are engaged by inserting the receptacle into the header.
The guide devices of both housing and header prevent reverse connector insertion.
Secure locking mechanism (RA, RX headers)
The locking levers are engaged by inserting the receptacle into the header. This ensures a firm connection that is highly resistant to impact and vibration.
Housing lances
The contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion.
Low insertion force contact
The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation.
Anti-misinsertion feature
The guide devices of both housing and header prevent reverse connector insertion.
Standards
UL Recognized E60389
RoHS Compliant
