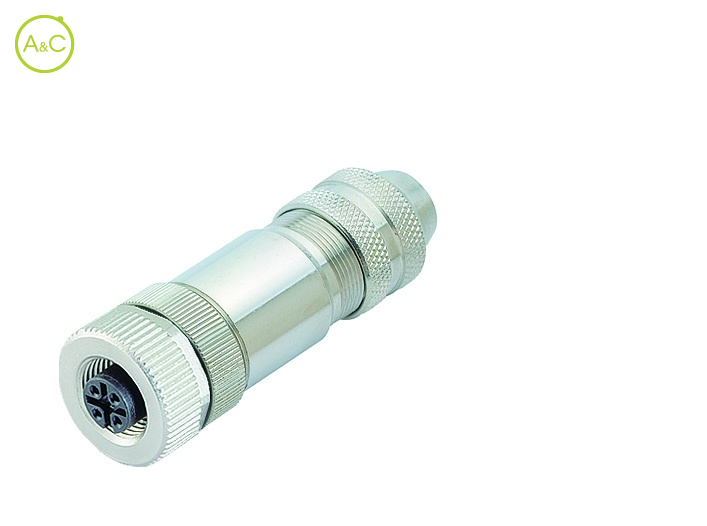

Female round connector
Do you have any questions about this product?
More info on this brand:
Shield
Shield
Number Of Poles
- 4
- 5
| Article Number | RDJF 30410 090 |
| Number Of Contacts | 4 |
| Protection Degree | IP67* |
| Upper Temperature | +90 °C |
| Lower Temperature | -25 °C |
| Cable Diameter | 6-8 mm |
| Fixing Thread | M12 |
| Housing Material | Metal nickel plated |
| Housing Oil Resistance | Very good |
| Contact Material | Optalloy |
| Max. Wire Section | 0,5 mm² |
| Locking Nut Material | Metal nickel plated |
| Voltage Vdc | 1 to 250 |
| Voltage Vac | 1 to 250 |
| Max. Currrent | 4 A @40°C |
| Contact Gender | F |
| Coding | A |
| Cabling System | Screw vite |
| Remark* | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
Characteristics differ between variants of a connector
