Plug for RHM Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Plug
- Lower
- Upper
- Upper and lower
| Article Number | RHM-176P-SDK-11-U1L1C | RHM-176P-SDK-11-U2L1C |
| Number Of Contacts | 88 | 88 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.0mm Pitch Board-to-Board Connector | 1.0mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm | 1.00 mm |
| Rated Current (ac/dc) | 0.5 A | 0.5 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Key pattern of mating part: upper: Pattern 1 lower: pattern 1 | Key pattern of mating part: upper: Pattern 2 lower: pattern 1 |
Characteristics differ between variants of a connector

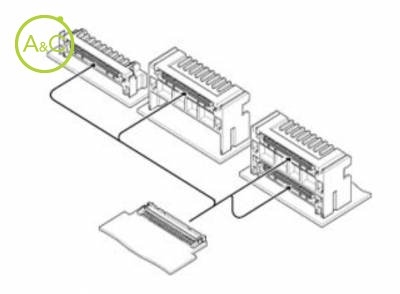

The plug consists of upper and lower parts in order to save space.
This connector enables also flexible application by using either upper or lower parts individually.
The upper and lower parts of plug can be used individually
Reversible connection
8 positioning keys can be set
RoHS Compliant
