Side Entry Header THT
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
Article Number | S02-BDS-3-B |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 3.5mm Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 3.50 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 1,4 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Characteristics differ between variants of a connector

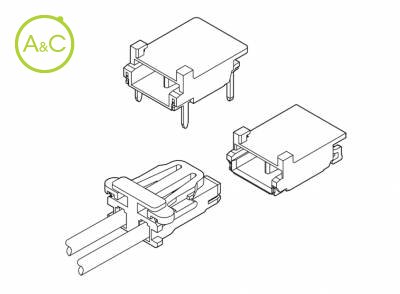

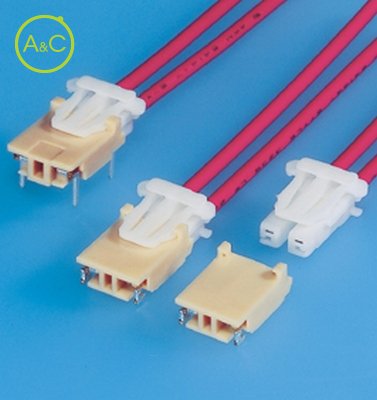

The BD connector series introduced by JST is a 2 circuit, 3.5mm pitch wire to board connector. This small and low profile connector has a high voltage rating of 1,400 volts, which makes it an ideal connector for backlight applications of LCD's (liquid crystal displays). The BD connector also incorporates a unique locking feature, which makes this connector one of the most robust connectors of its type in the industry.
Available in through hole (THT) and surface mount (SMT) variations, this side entry connector is suitable for both manual and automatic process environments, and is also compatible with the BHS series connector.
Secure locking mechanism
Arm-locking mechanism as secure lock is adopted in order to prevent coming out of housing.
High withstand voltage design
Securing the sufficient creepage distance, it considers as high withstanding voltage design. (Conformed to IEC-60950) When applying voltage rating, consideration of PC board pattern design is required.
Low profile
Corresponding to thinner LCD, the connector height is designed as small and low profile.
Compatibility
This BD connector is compatible with the BHS connector. Secure locking mechanism is available for BD connector header and socket only. Socket contact is same contact as BHS connector.
Standards
UL Recognized E60389
RoHS Compliant
