Header THT
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 169
| Article Number | S169B-HITHTP-01A |
| Number Of Contacts | 169 |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| General Description | 2.2mm Pitch Disconnectable Crimp Style |
| Connection Type | Automotive |
| Pitch / Style | 2.20 mm |
| Rated Current (ac/dc) | 2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 14 V |
Characteristics differ between variants of a connector

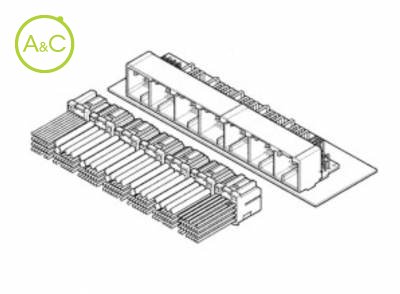

The HIT connector is multi-circuit and miniaturized for ECU for the automobile.
Female connector is divided into seven housings, and considers the ergonomics and workability.
Multi-circuit structure, Miniaturized
Current products available are up to 180-circuit. Although this connector is multi-circuit, it was miniaturized by narrow pitch. The insertion force in the mating operation of one time is decreased by block diversion structure.
Reliability
It conforms to the automotive performance evaluation standard.
Diversity
It is hybrid structures of using 0.64mm(.025") and 2.8mm(.110") terminals. Large current circuit is also available.
RoHS Compliant
