Socket Contact AWG 30 to 28
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- AWG 30 to 28
| Article Number | SACH-003G-P0.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

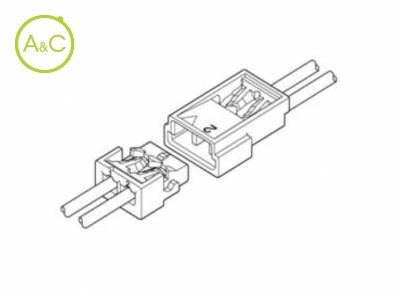

| General Description | 1.2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Applicable Wire Size | 0.05 to 0.08 (AWG #30 to #28) mm² |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 1.20 mm |
| Rated Current (ac/dc) | 2 A |
| Rated Voltage (ac/dc) | 50 V |
Characteristics differ between variants of a connector
This is the wire-to-wire connector for DC power supply compatible with the ACH connector for PC board.
Connector for DC power supply
Common use with the existing socket contact of ACH connector
RoHS Compliant
