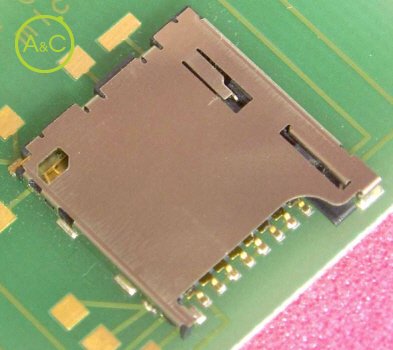

Connector for Micro SD Memory Card
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Tape
- EMC
Article Number | SDHL-8BNS-K-363-A0-ETB (HF) |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | Micro SD Card Connector |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.1 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 100 V |
Standard | Micro SD |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

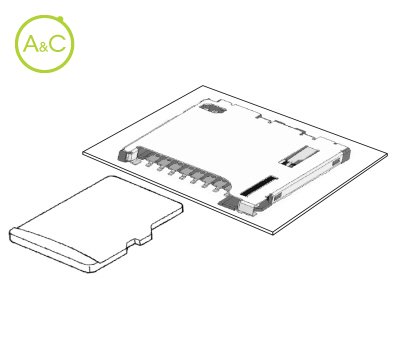

SDHL connector is designed for Micro SD memory cards, it has a low profile design with a Push - Push mechanism so the Micro SD card can be easily ejected.
To prevent the Micro SD card from jumping out, this micro SD card connector has Original protection mechanism incorporated.
This Micro SD card connector can be used in most small applications i.e. Digital cameras, PDA's and mobile phones.
Micro SD Card
Low profile with a maximum height of 1.4mm
Space saving design
SMT Type
Push-Push mechanism
RoHS Compliant
