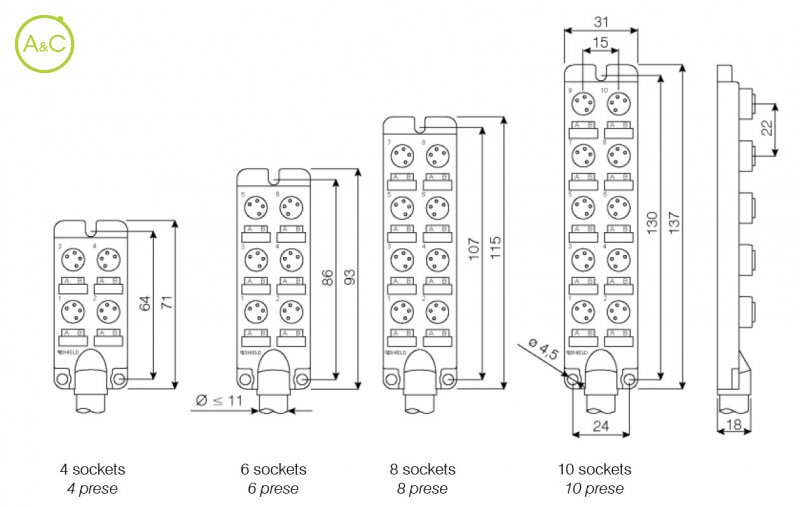

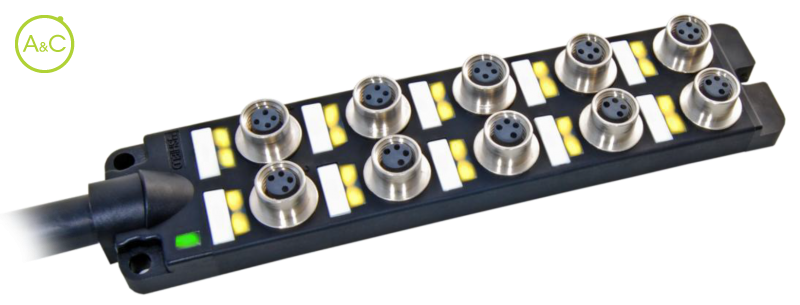

Top mounting, from 4 to 10 sockets, 2 signals each socket

With LED

SF24 - SF242N7 06400

SF24 - SF242N7 06400

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Socket Quantity

4
6
8
10

Article Number	SF242N7 06400 224 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SF243N7 06400 328 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SF244N7 06400 318 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SF245N7 06400 220 5000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	6 A for common wires, 3 A each socket A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 2= B signal, 3= V-, 4= A signal
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Characteristics differ between variants of a connector
