Contact AWG 30 to 22
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Applicable Wire
- AWG 26 to 22
- AWG 30 to 26
Article Number | SSFH-001T-P0.5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.8mm Disconnectable Crimp Style |
Applicable Wire Size | 0.13 to 0.33 (AWG #26 to #22) mm² |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.80 mm |
Rated Current (ac/dc) | 4 A |
Rated Voltage (ac/dc) | 350 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

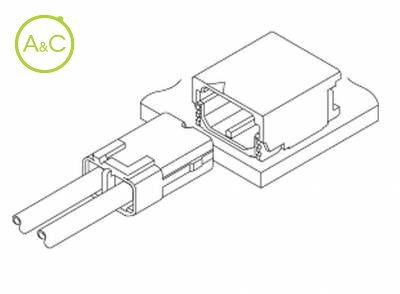

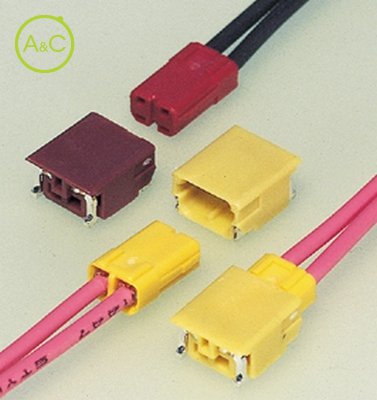

This low profile connector with height of 3.0mm (.118") is designed for connection to stroboSCope flash and realized space saving.
Contact lance
Contact lance with the spring feature is adopted as the method for fixing the contact to the housing.
Countermeasure for inverse insertion and locking feature
The guide for preventing insertion is provided at bottom of inside housing. Housing lock is also added in order to prevent from slipping off due to vibration or mechanical shock.
Standards
UL Recognized E60389
RoHS Compliant
